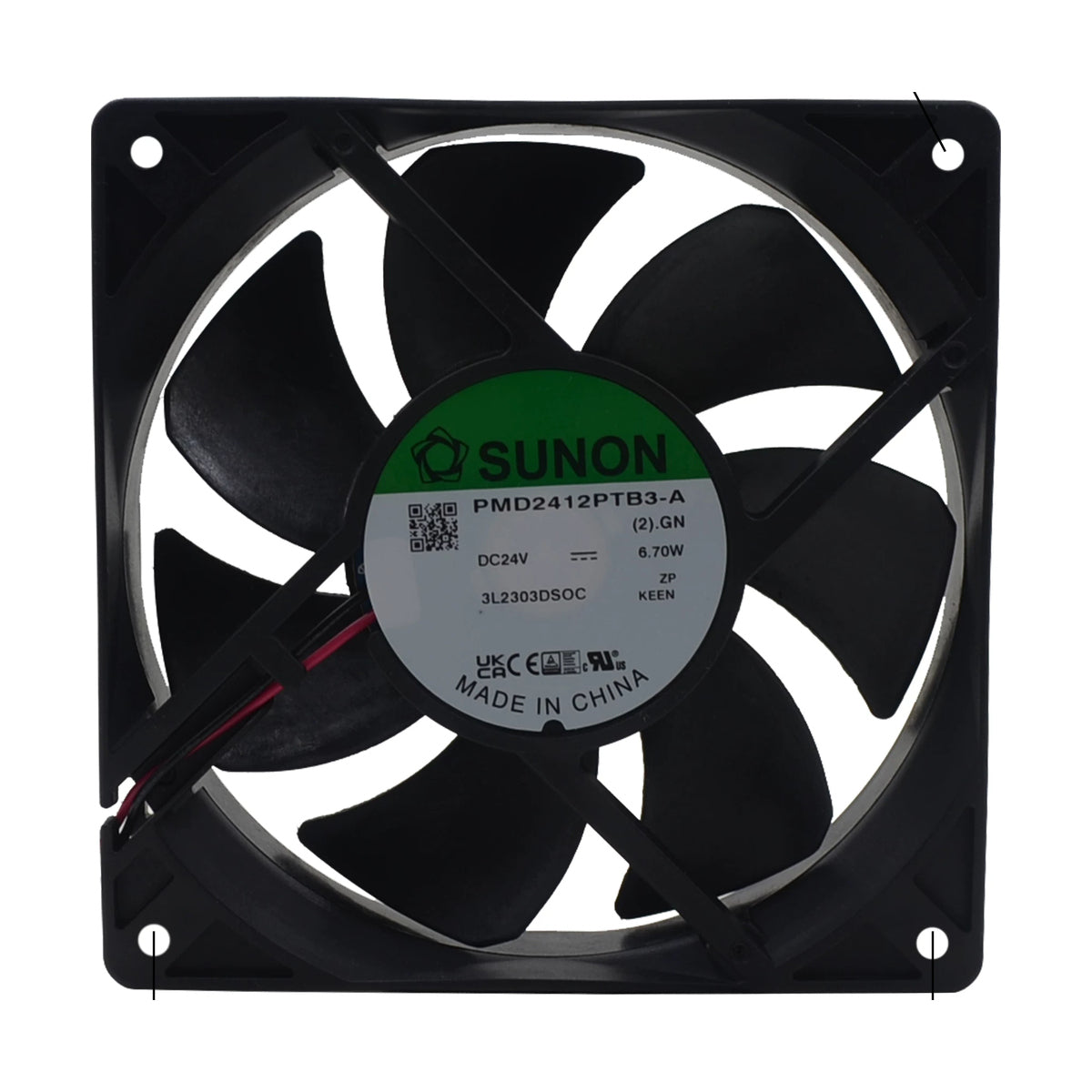

SUNON 24V DC PMD2412PTB3-A Axial Fan 120*120*25mm

SUNON 24V DC PMD2412PTB3-A Axial Fan 120*120*25mm

PMD2412PTB3-A by SUNON is a axial fan for equipment cooling, control cabinets, power electronics and industrial ventilation.

  • Model: PMD2412PTB3-A
  • Rated voltage: 24 VDC
  • Dimensions: 120 × 120 × 25 mm
  • Current: 0.28 A
  • Input power: 6.7 W
  • Speed: 3600 RPM
  • Air flow: 120 CFM
  • Static pressure: 0.62 inH₂O
  • Noise: 54 dB(A)
  • Bearing: Ball Bearing
  • Connector / wire: Red (+), black (-); 2 wires, 320 mm outside frame
  • Operating temperature: -10～+70 °C

Please confirm the complete model code, dimensions, voltage, connector, mounting details and operating point before ordering.

Model / SKUPMD2412PTB3-A

Contact us for current availability, lead time, technical support and a formal quotation.

Request a Quote WhatsApp Email Inquiry

B2B supply · Worldwide delivery · Response within 1 business day

PMD2412PTB3-A

  • Genuine Products
  • Technical Support
  • Global Delivery

Technical Specifications

View the product description and technical datasheet for dimensions electrical ratings airflow noise materials and operating limits. Contact us if you need engineering verification before ordering.

Documents & Compliance

Datasheets installation instructions and compliance documents are available on request. Please include the manufacturer part number and required document when contacting us.

Shipping & Technical Support

Contact us for quantity pricing lead times global delivery options or application support. We can help verify the correct part before you order.

View full details

Technical Parameters

ModelPMD2412PTB3-A
Size (mm)120*120*25
Voltage (V)24
Speed (RPM)3600
Airflow (m³/h)203.9
Power (W)6.7
Pressure (Pa)154
