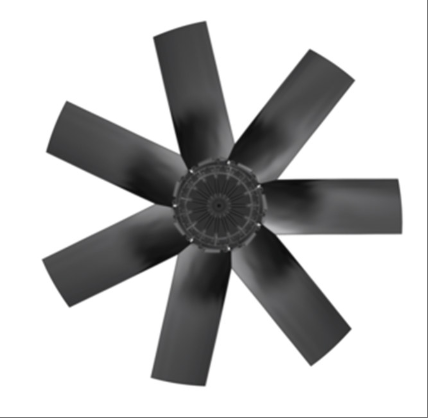

Ziehl-Abegg FC091-SDS.7Q.V7 AC Axial Fan 3~400VAC 50Hz IP54 External Rotor

Ziehl-Abegg FC091-SDS.7Q.V7 AC Axial Fan 3~400VAC 50Hz IP54 External Rotor

AC Axial Fan, 3~400VAC ±10%, 50Hz, External Rotor Motor, 890/700RPM, 2.60kW Input Power, 7.2/4.3A Rated Current, IP54 Protection, ErP 2016 (N40) Compliant, Designed for Industrial Ventilation, HVAC and Air Handling Applications.

Model / SKUZiehl-Abegg FC091-SDS.7Q.V7 AC Axial Fan 3~400VAC 50Hz IP54 External Rotor

Contact us for current availability, lead time, technical support and a formal quotation.

Request a Quote WhatsApp Email Inquiry

B2B supply · Worldwide delivery · Response within 1 business day

  • Genuine Products
  • Technical Support
  • Global Delivery

Technical Specifications

View the product description and technical datasheet for dimensions electrical ratings airflow noise materials and operating limits. Contact us if you need engineering verification before ordering.

Documents & Compliance

Datasheets installation instructions and compliance documents are available on request. Please include the manufacturer part number and required document when contacting us.

Shipping & Technical Support

Contact us for quantity pricing lead times global delivery options or application support. We can help verify the correct part before you order.

View full details

Technical Parameters

ModelFC091-SDS.7Q.V7
Size (mm)910
Voltage (V)3~400
Speed (RPM)890 / 700
Airflow (m³/h)37500
Power (W)3600
Pressure (Pa)240

Product Features

Three-phase AC axial fan; 3~400VAC operation; external rotor motor; 890/700RPM speed; 2.60kW input power; 7.2/4.3A rated current; IP54 protection; ErP 2016 (N40) compliant; suitable for continuous operation up to 60°C.

Product Applications

Industrial Ventilation, Air Handling Units (AHU), HVAC Systems, Condensers, Evaporators, Heat Exchangers, Cooling Equipment, Refrigeration Systems

Frequently Asked Questions

Q: What is the rated voltage?
A: 3~400VAC ±10%, 50Hz.

Q: What is the rated speed?
A: 890/700RPM.

Q: What is the protection class?
A: IP54.

Q: What is the maximum ambient temperature?
A: 60°C.
